🚜 Hydraulic System Self-Loading Concrete Mixer – TRAFLO SLM 3.0
The Hydraulic System Self-Loading Concrete Mixer is engineered to simplify the concrete mixing process by automating all loading, mixing, and discharging operations through a fully hydraulic system. This advanced design eliminates the need for manual labor and provides precise control over every step of the concrete mixing cycle.
Built for demanding environments, it is perfect for road construction, small to medium building projects, government civil works, irrigation, and dam construction. The machine offers excellent performance even in remote locations where power supply and infrastructure are limited.
With powerful hydraulic cylinders and systems, the operator can control loading, mixing speed, and discharge with ease. The system ensures smooth operation, higher productivity, and consistent concrete quality with minimal fuel consumption.
⚙️ Technical Specifications
| Sr. No | Parameter | Details |
|---|---|---|
| 1 | Machine Mounting | Tractor mounted self-loading concrete mixer |
| 2 | Model | TRAFLO SLM 3.0 |
| 3 | Operating Capacity | 2.5 – 3.0 CMT |
| 4 | Chassis | 8” Mild Steel (MS) robust frame |
| 5 | Wheel Axle | 90mm x 90mm x 2000mm |
| 6 | Mixer Drum | 6mm thick MS, PU painted (Epoxy coating on demand) |
| 7 | Hydraulic | Pump & Motor\ |

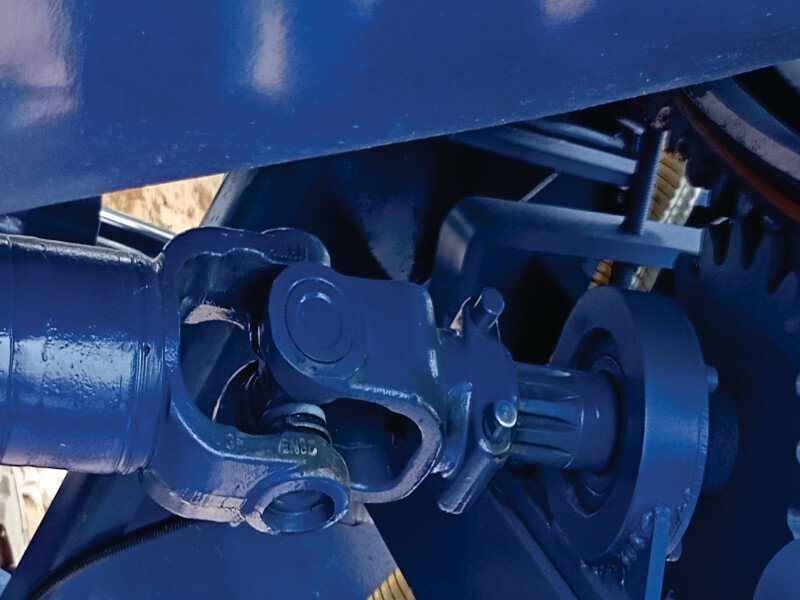

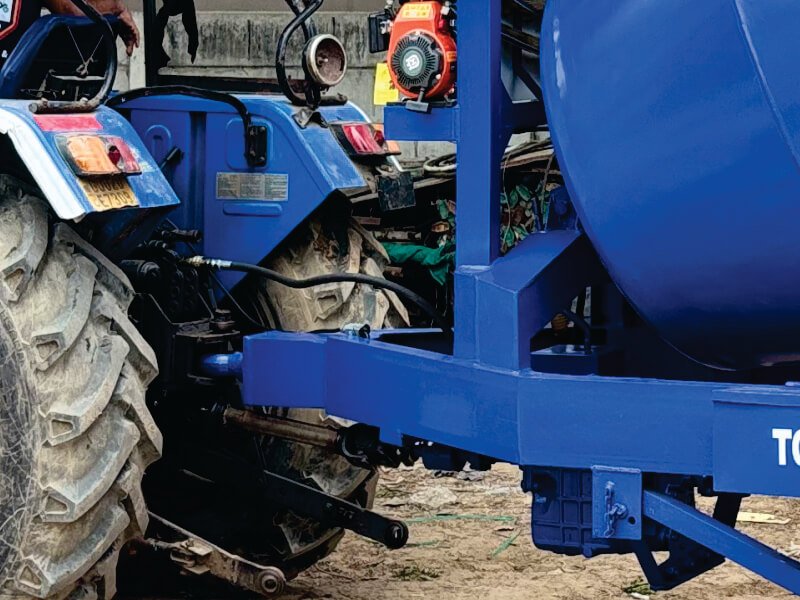

| 8 | Operating Power | Powered from Tractor PTO power |

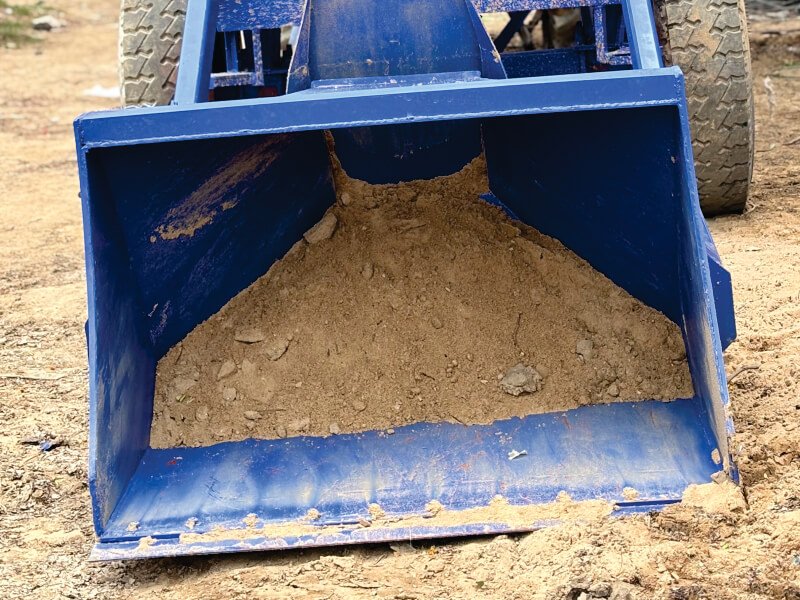

| 9 | Loading Bucket Capacity | 400 – 500 Kg |
| 10 | Drum Rotation Speed | 16 – 18 RPM (Normal operation) |
| 11 | Water Tank Capacity | 210 Liters |

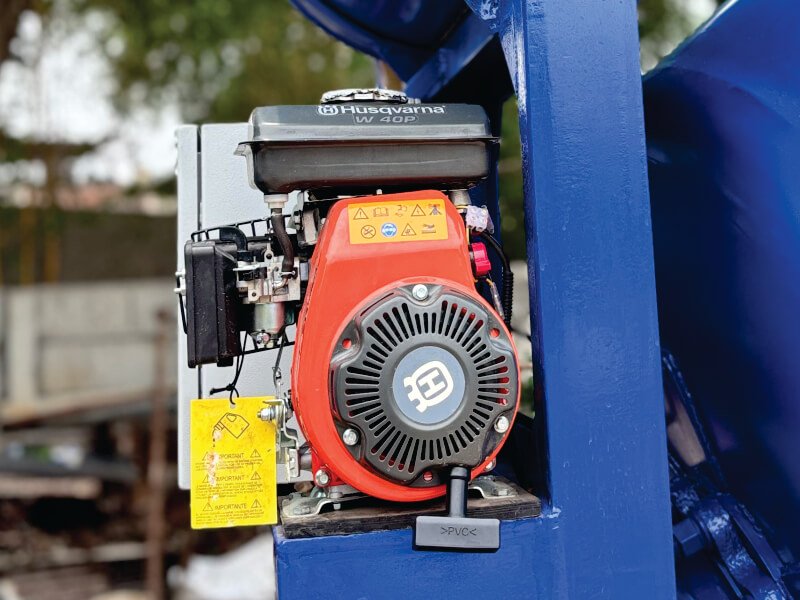

| 12 | Water Pump Capacity | 400 LPM (Petrol Engine) |
| 13 | Hydraulic Cylinder | Operated by Tractor Hydraulic System |
| 14 | Fuel Consumption | 2 – 2.5 Liters/hour |
| 15 | Wheel Size | New Tire 1000*20 (J.K. Tire / Apollo) |
| 16 | Colour Options | Blue, White, Yellow |

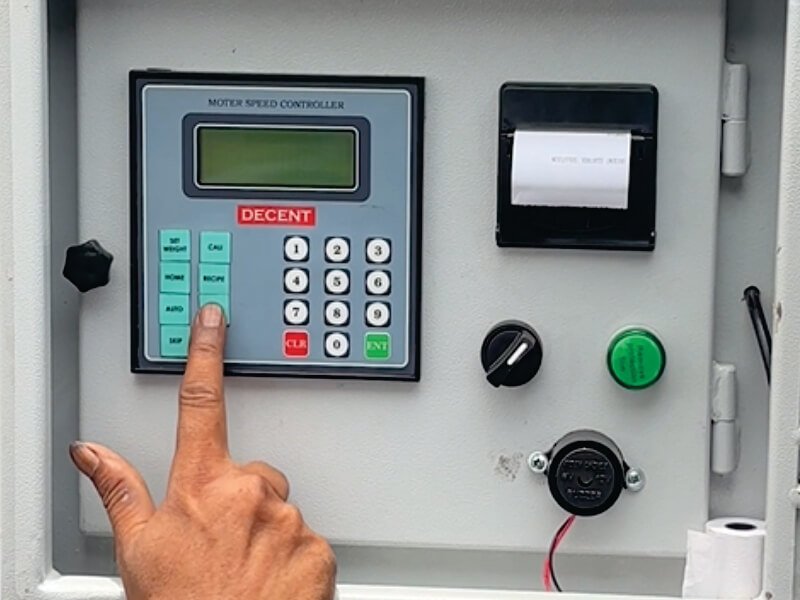

| 17 | Reporting System | Data saved on Pen Drive & Print option |
| 18 | Gross Weight | 2700 Kg |
| 19 | Overall Dimensions | 3800mm (L) x 1500mm (W) x 2900mm (H) (3500mm H with bucket) |
🌟 Special Features
- No Tractor Modification Required – Simply hook and operate
- Operator-Friendly Design – Easy controls for smooth operation
- Continuous Operation – Designed for long working hours
- Minimum Maintenance – Strong and durable components
- Low Fuel Consumption – Efficient diesel & PTO power usage
- Compact & Sturdy Structure – Easily maneuverable in rough terrain
- Portable Reporting System – Export logs via Pen Drive or print
🏗️ Application Areas
- Road Construction & Rural Development
- Small to Medium Building Projects
- Agriculture, Irrigation & Canal Construction
- RCC & CC Road Development
- Government Civil Projects
- Concrete Mixing at Remote Locations where power supply is unavailable

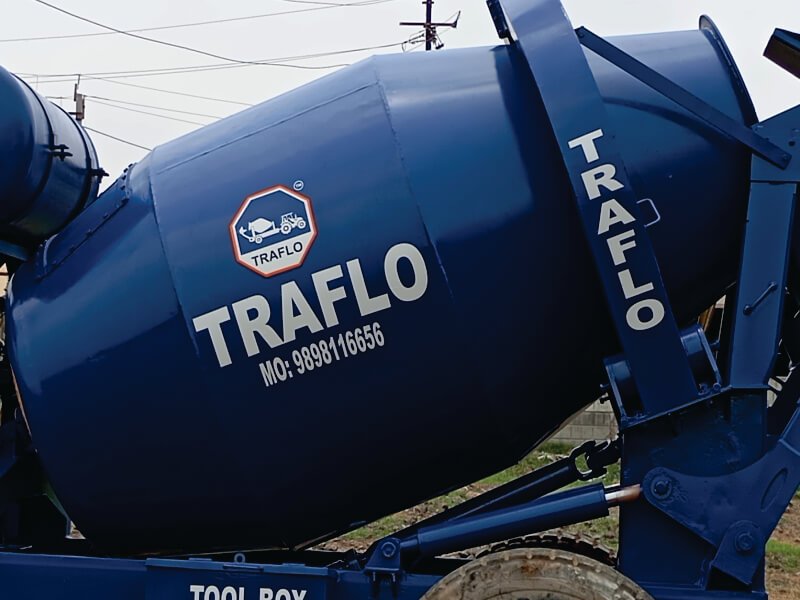

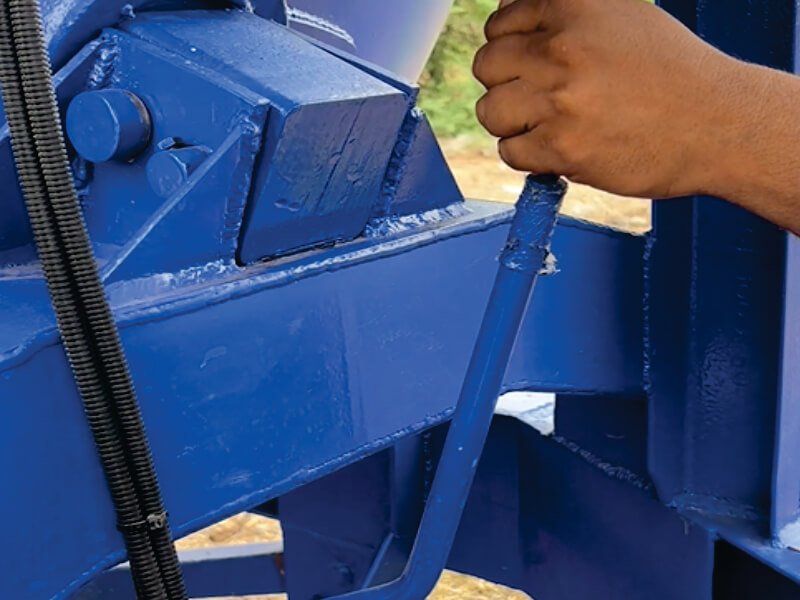

Photo Gallery
